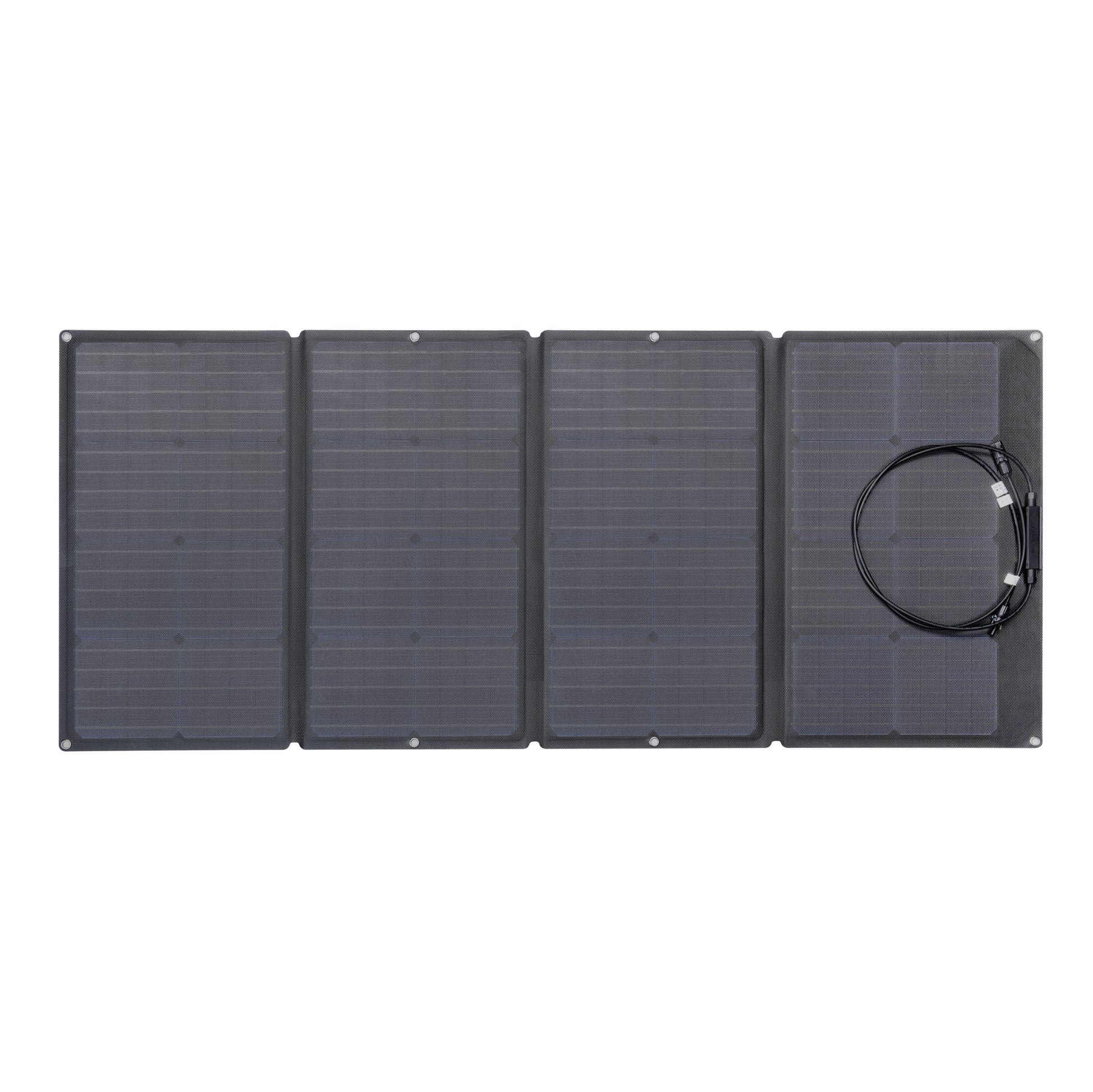

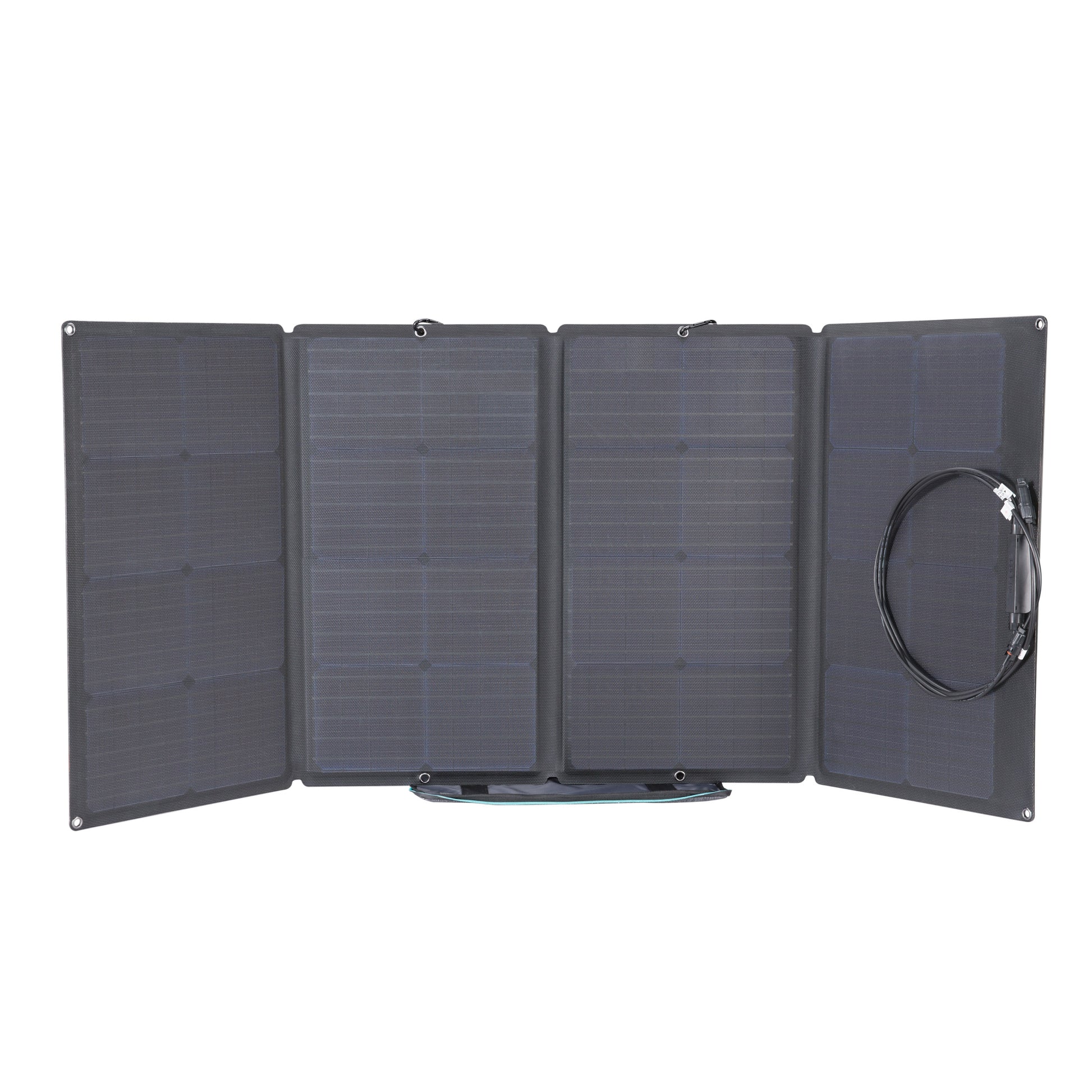

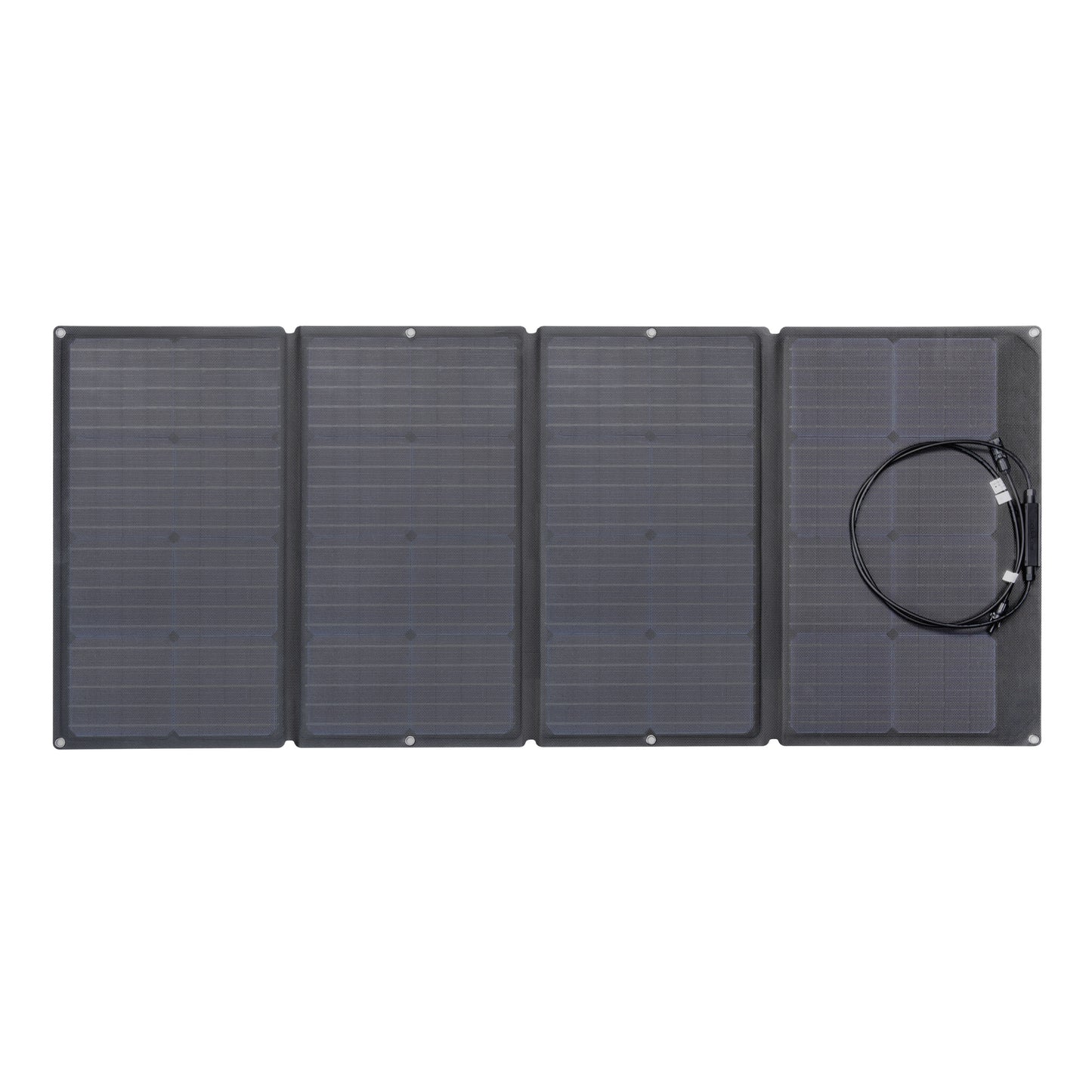

EcoFlow 160W Portable Solar Panel

DESCRIPTION

Portable & Self-supportable

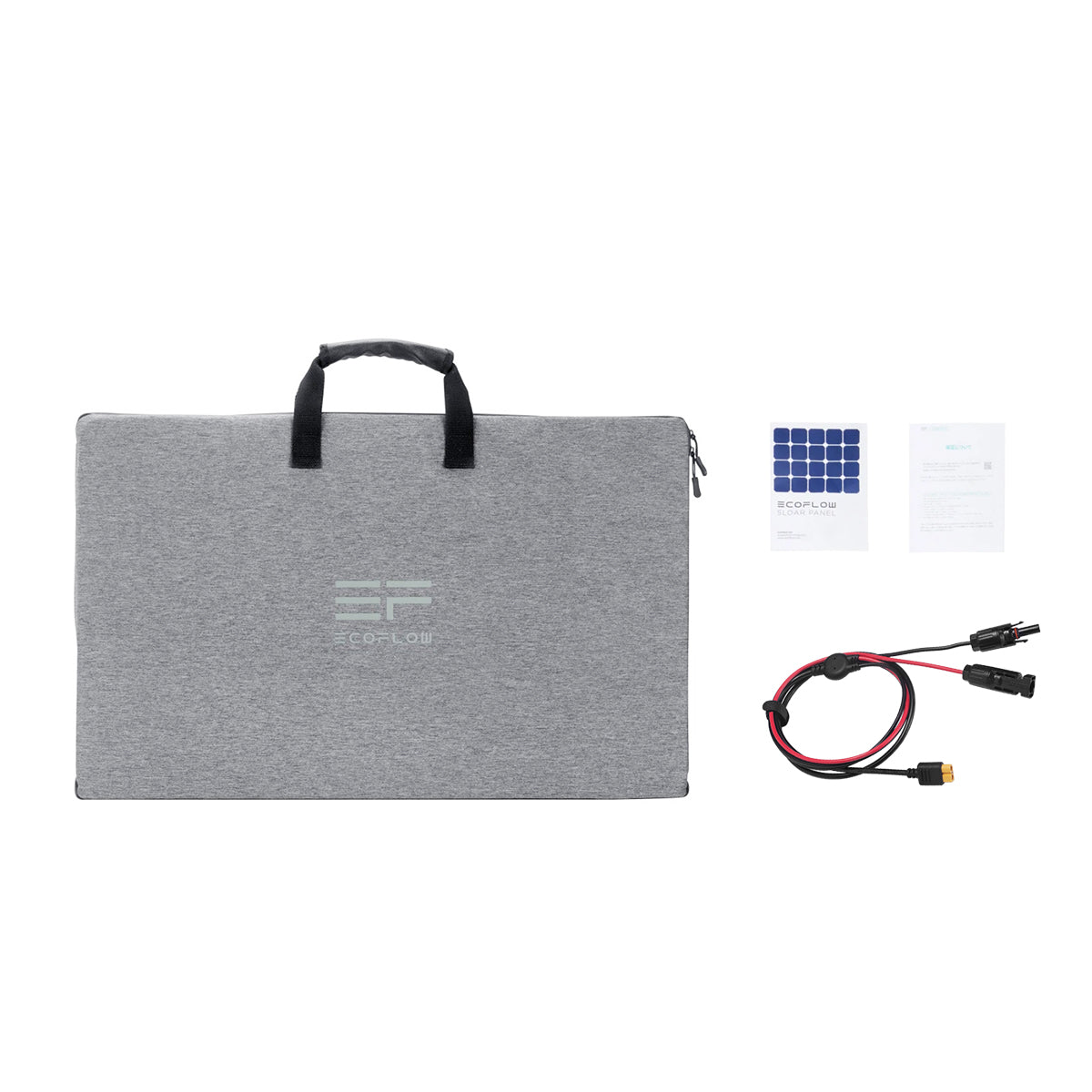

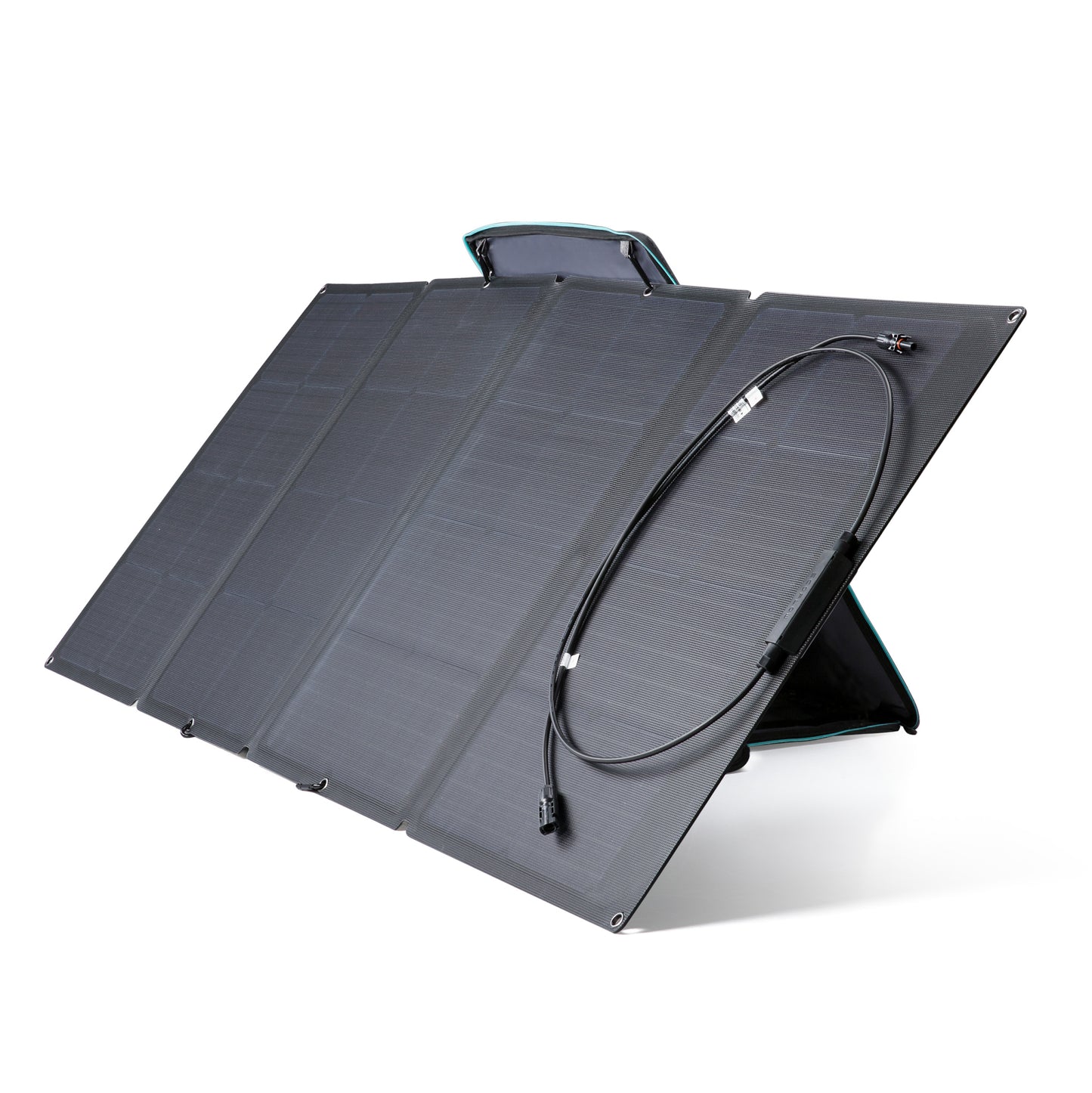

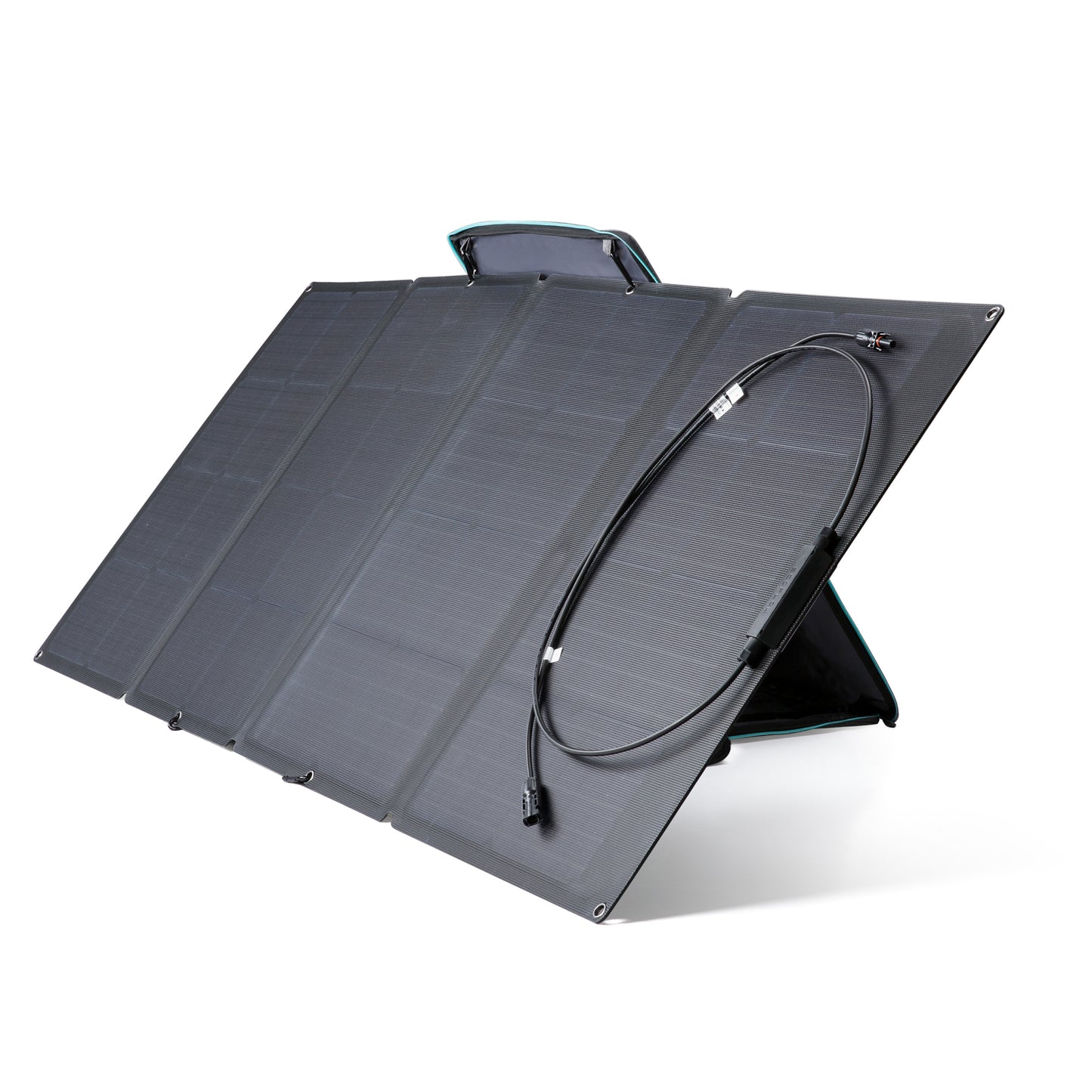

Carry this 15-pound panel in a case that doubles as a stand, giving you the best angle for solar charging.

So Much More Sun

32 premium monocrystalline silicon cells provide a high conversion efficiency of 22%. Recharge even faster by chaining multiple panels in a series or in parallel.

Built to weather the storm.

Our 160W portable solar panel can carry on collecting energy even during a downpour. With a protective ETFE film and a high IP resistance level of 68, the solar cells can withstand environments from humid and wet to dry and dusty.

SPECIFICATIONS

Unfolded Dimensions: 26.8*61.8*1.0 in (68*157*2.4 cm)
Folded Dimensions: 26.8*16.5*1.0 in (68*42*2.4 cm)
Weight: 15.4 lb (Solar Panel 11 lb)
Rated Power: 160W(±5W)
Efficiency: 21%–22%
Connector Type: Solar Connector
Open Circuit Voltage: 21.4V (Vmp 18.2V)
Short Circuit Current: 9.6A (Imp 8.8A)
Cell Type: Monocrystalline Silicon
Operating & Storage Temperature: −4°F to 185°F

FAQ

1. How do I get the most solar power?

Increase the efficiency of your solar panel by facing it directly at the sun without any obstructions. Remember to be careful when handling your solar panel because damaged cells provide less power.

2. Does it charge if it is inside?

Yes, if the only thing between it and the sun is transparent, but it won’t charge as well compared to being outside. You can compare the difference by looking at the input section of your power station’s LCD screen.

WARRANTY

12 months

USER MANUAL

EcoFlow 160W Portable Solar Panel User Manual
