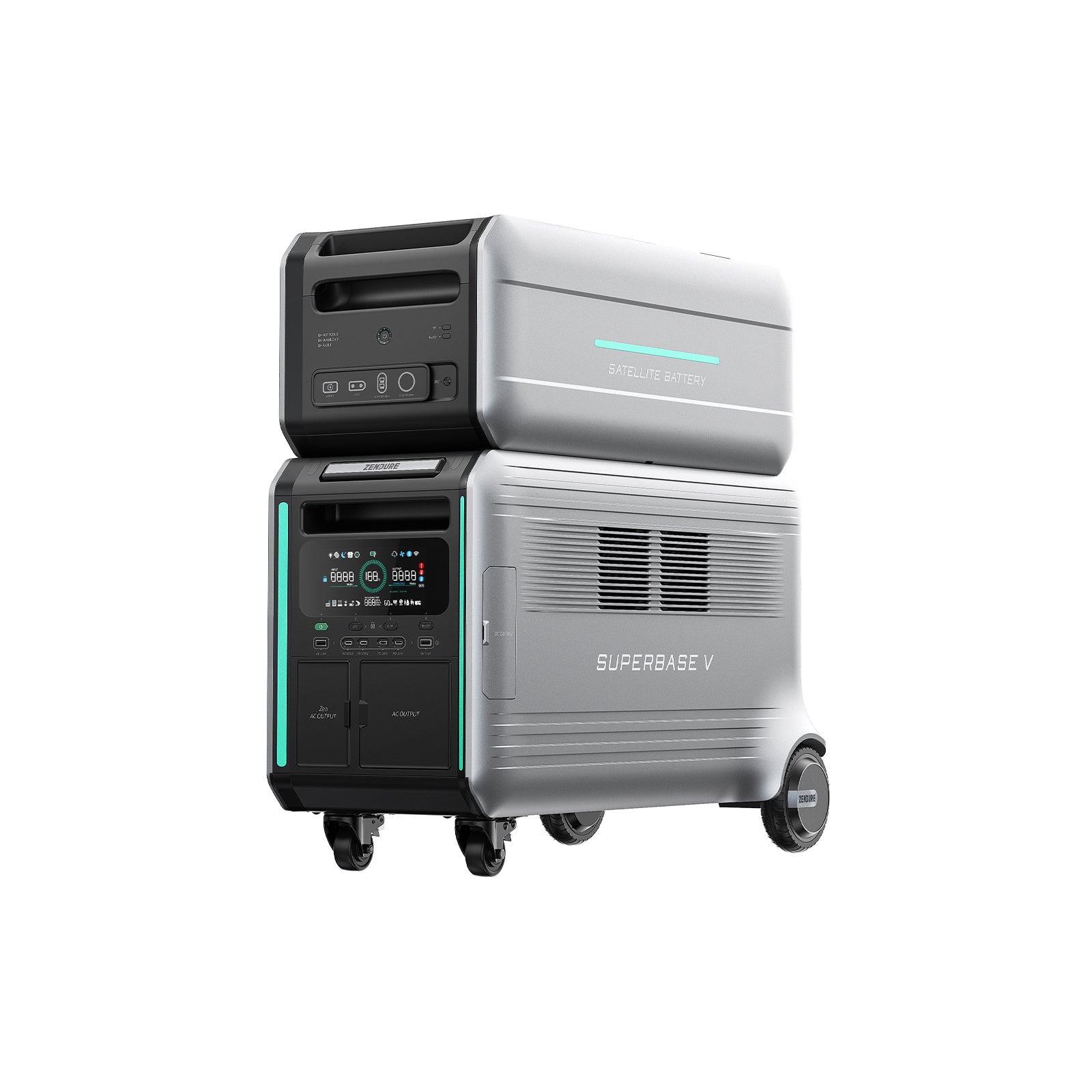

ZENDURE SuperBase V6400 + Satellite Battery B6400

DESCRIPTION

What a Concept

SuperBase V is the first plug-and-play home energy storage system designed for the whole house. A customizable energy ecosystem with user-centric design and revolutionary technology, SuperBase V sets a new standard for home energy storage.

Intelligent Energy Management

Our Home Panel with EV Outlets connects SuperBase V to your home’s electrical circuits to supply power throughout the house. The Zendure app gives you tools to monitor, manage, and customize your energy use. Using Zendure’s Time of Use tools, you can significantly reduce your energy bill.

EV-Grade Semi-Solid State Batteries

SuperBase V is the world's first home energy storage system with semi-solid state batteries. At more than 228Wh/kg, our semi-solid state batteries have up to 42% more energy per pound compared to lithium iron phosphate (LiFePO4) batteries. And with our battery management software, internal battery life can be an amazing 10 years or more.

6.4 to 64kWh Capacity

The SuperBase V6400 has a storage capacity of 6.4 kWh (6,438Wh). The maximum configuration for SuperBase V6400 includes two base units and eight Satellite Batteries for a total capacity of 64kWh. This is enough energy to power a typical household for a week or more.

3800W to 7600W AC Output

A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.

Combining AC and solar power, SuperBase V can charge up to 5,150W on its own, or 6,600W when connected to a Satellite Battery. Whether you're planning for an emergency or using SuperBase V to manage your household energy consumption, faster is always better.SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.You can charge SuperBase V from a 120V or 240V outlet AC. At 240V, SuperBase V can draw 3,600W at its AC input and recharge in about 2 hours.

Plug-and-Play Energy Storage/Use

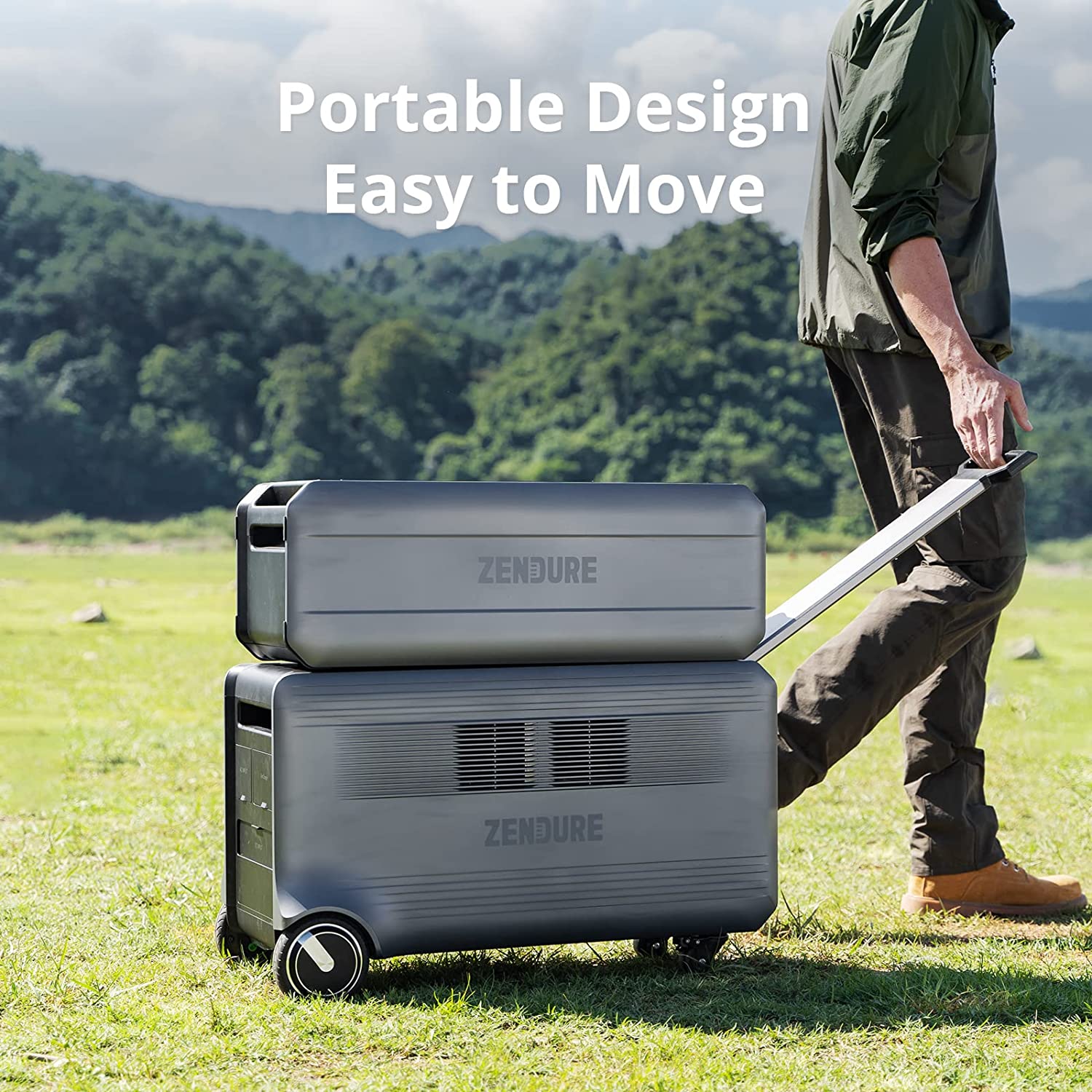

Home batteries can be quite heavy. SuperBase V’s rear wheels are motorized to help lighten the load. Simply pull the handle and enjoy true portability, even on inclined surfaces.

SPECIFICATIONS

Model: SuperBase V6400
Capacity/Power:6438Wh
Battery Type: Semi-solid state
Output:4x*5-20: 120VAC,15A(total 3800W); 1x6-20: 240VAC,16A; 1x TT-30:120VAC,30A;1x
Car outlet: 12.6V/10A MAX
3xDC5521: 12.6V/10A MAX 1xAndersen:12.6V 30A
USB-C(1): 5V-20V, 100W MAX
USB-C(2): 5V-20V, 100W MAX
USB-C(3)/(4): 5V-20V, 20W MAX total
Input:1800W MAX, 220-240V via
AC
Car charging: 12/24V
Solar Input:1800W, 60-
160V, via AC or 600W, 12-
60V, via DC XT60
Product Size: 28.74*13.62*17.4inch
Net Weight: 59kg /130lbs
Package Size: 81x 40 x 48cm
Gross Weight: 69kg

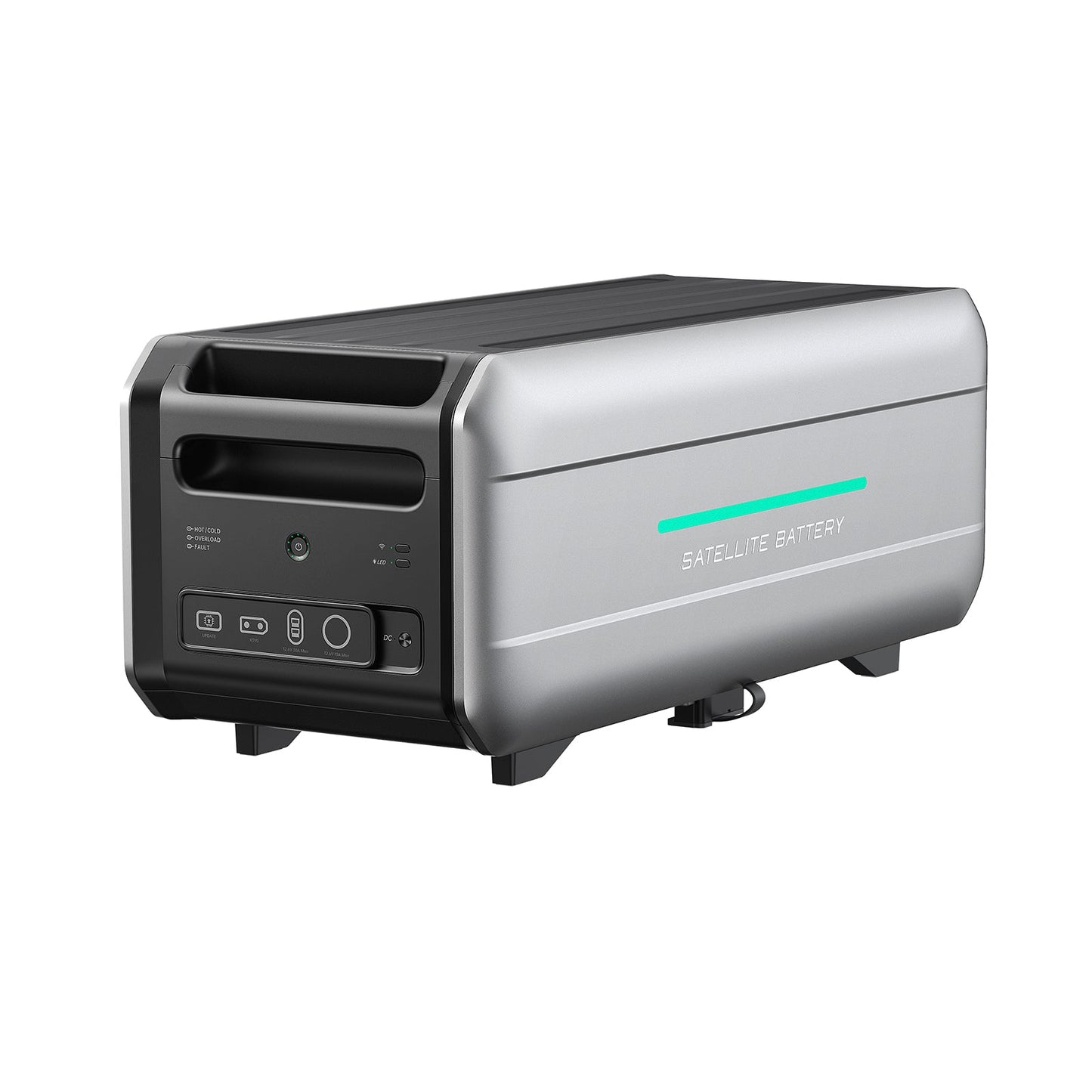

Model: ZDSATB6400
Capacity: 6,438Wh
Size: 69 x 28.5 x 27.4cm
Battery type: Semi-solid State
Color: Gray
DC Input: XT90 Input: 12-150V⎓10A, 600W Max
Output：

•  1x Car Outlet : 12.6V⎓10A
•  1x Andersen: 12.6V⎓30A, 378W
•  MaxXT90: 12-60V⎓10A, 600W Max (App enabled)

Weight: 101lbs
LED light: RGB; Lighting
In The Box: Handle Cover, MC4 to XT90 cable
More: Smart APP compatible

FAQ

1. What is the cycle life for SuperBase V?

3,000+ cycles for SuperBase V6400 with semi-solid state batteries and 6,000+ cycles for SuperBase V4600 with LiFePO4 batteries.

2. What kind of batteries does SuperBase V use?

SuperBase V6400 uses semi-solid state batteries with a total charge capacity of 6,438Wh, while SuperBase V4600 uses LFP (LiFePO4) batteries and has a charge capacity of 4,608Wh.

3. What is the AC output power of SuperBase V?

The LFP and SSS versions of SuperBase V both have 3,800W rated power and 5,000W peak power. Two SuperBase V's with the same type of battery can be connected to each other with our ZenY cable or the Home Panel to achieve up to 7,600W of total output power.

4. Can 2 SuperBase V's be connected for higher output power?

Yes, two SuperBase V's can be connected together using either our Home Panel or the ZenY cable, doubling the rated output power to 7,600W.

5. Can I mix semi-solid state and LFP products?

No, a SuperBase V system should be configured with only semi-solid-state components or only LFP components.

6. What is the capacity of the semi-solid state SuperBase V?

The semi-solid-state version has a capacity of 6,438Wh, and the LFP version has a capacity of 4,608Wh.

7. What is the max solar panel charging output?

SuperBase V can collect up to 3,000W through the XT-90 port.

8. Where is the solar panel input?

SuperBase V can accept solar power through the XT90 port or the AC input.

9. How many MPPT ports are used in order to achieve 3,000 solar input?

SuperBase V has one MPPT to accept solar power through the XT90 port. We are currently evaluating new products that will include 2 MPPT inputs and 2 MPPT outputs.

10. What is the switching time for UPS?

The US model of SuperBase V can switch to battery power with 0ms of downtime to its AC output port. Other models and other connections will see less than 13ms of interruption.

11. How many Satellite Batteries can be connected to a SuperBase V?

For each SuperBase V, you can link up to 4 Satellite Batteries. A system can include up to two SuperBase V's working in tandem, with a maximum of 8 Satellite Batteries total.

12. How do I connect the Satellite Batteries to each other? And how do i connect them to SuperBase V?

Satellite Batteries can directly stack on each other without cable. To connect a Satellite battery to SuperBase V, the included battery cable is the only connection required.

13. Is ZENDURE's Home Panel with EV Outlets just a transfer switch?

The Home Panel is a transfer switch and more. It's also a fast-charging dock for SuperBase V and features two EV charging outlets.

14. How do I install the Home Panel?

Zendure's Home Panel should be installed by a licensed electrician with the proper qualifications.

15. Does the system have voice control features?

Yes, the system can respond to commands given through a paired Amazon Alexa or Google Home device.

16. What is the ZenY Cable?

You can use a ZenY Cable to connect 2 two SuperBase V's together for higher output (up to 7,200W) and then connect them to a regular transfer switch. It's currently available for the US version.

17. Can the SuperBase V be charged with solar panels from a different brand?

Yes, SuperBase V can be charged by third-party solar panels with voltage ranging from 12V to 150V; Zendure's 400W Solar Panel and 320W Rigid Solar Panel have been thoroughly tested with SuperBase V and remain our recommendation.

18. What is the plug type for the Mobile EV Charger?

14-50 plug for Type 1 (J1772) connector with 5-15 plug and 6-20 plug adaptor cables; CEE 32 plug for Type 2 (Mennekes) with EU plug, UK plug and AU plug adatpor cables.

19. What can the EV T1 Charger be used for?

Using the EV T1 Adapter, you can charge SuperBase V via a Type 1 EV charger. It's also a convenient way for European Standard vehicles to charge from devices that have an American Standard charging connector.

20. Is the Satellite Plug just a smart plug?

Like traditional smart plugs, the Satellite Plug can be used to remotely turn devices on or off. Together with the Home Panel system, our Satellite Plugs achieve their true potential, providing insight and tools to manage your home's power.

21. What is the optional battery mounting bracket used for?

The Battery Mounting Bracket is designed to secure our Satellite Expansion Batteries inside a moving vehicle.

22. Why are the expansion batteries called "Satellites"?

Satellite batteries are an excellent companion to SuperBase V to increase your system's capacity, but they also have their own independent DC input and output capabilities that allow them to function as standalone units as well. Similarly, while the Moon is Earth's companion as a natural satellite, it can shine independently and has its own charm.

23. How many Satellite batteries can be connected to a single SuperBase V?

For each SuperBase V, you can link up to 4 Satellite Batteries. A system can include up to two SuperBase V's working in tandem, with a maximum of 8 Satellite Batteries total.

24. How do I connect the Satellite Batteries to each other? And how do I connect them to SuperBase V?

Satellite Batteries can directly stack on each other without cable. To connect a Satellite battery to SuperBase V, the included battery cable is the only connection required.

WARRANTY

SuperBaseV - 36 months

Satellite Battery - 36 months

*A warranty extension is available for some of ZENDURE's products. To receive the warranty extension, you will need to register this product in the ZENDURE app, and there may be additional costs or other conditions involved.
