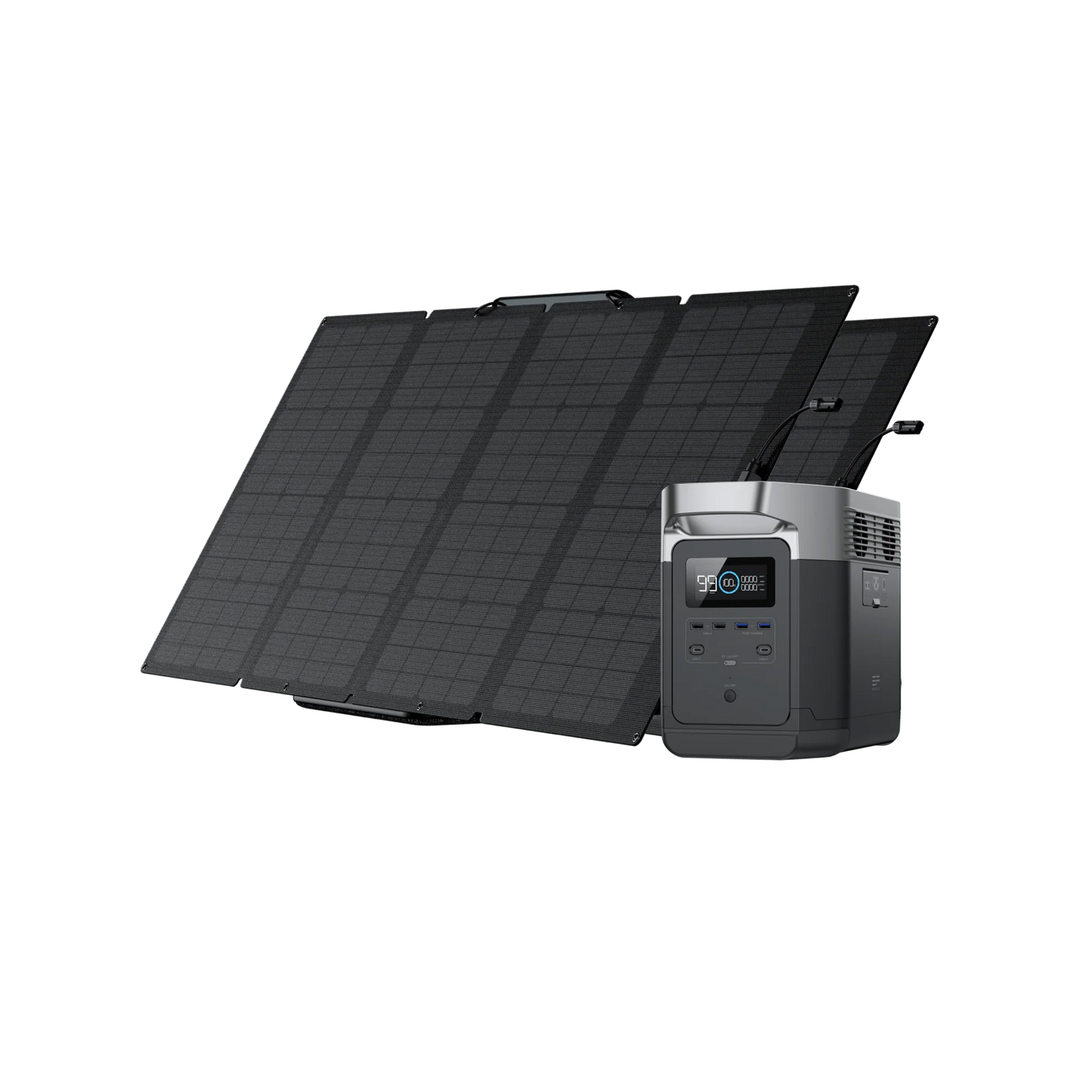

EcoFlow DELTA Solar Generator (PV 160W)

DESCRIPTION

The Worlds Fastest Charging Portable Power Station

EcoFlow has the world's fastest charging power stations. DELTA charges from 0-80% in under an hour, giving you a quick boost of power even during the worst situations.

So Much More Sun

32 premium monocrystalline silicon cells provide a high conversion efficiency of 22%. Recharge even faster by chaining multiple panels in series or in parallel.

Better Together

Recharge freely and naturally when you link EcoFlow’s 110W Solar Panel to a DELTA portable power station.

SPECIFICATIONS

Model: DELTA 1300 Portable Power Station
Net Weight: 30.9lbs (14kg)
Dimension: 15.7 x 8.3 x 10.6 in (40 x 21 x 27 cm)
Charge Temperature: 32 to 113°F (0 to 45°C)
Discharge Temperature: -4 to 113°F (-20 to 45°C)
Color: Gray & black
Charge Method: AC Wall Outlet, 12V Car Adaptor, Solar Panel
Full Recharge Time: 1.6 Hours (AC) 10.5 Hours (12/24V Car Adaptor) 2.6-5.3 Hours (Using 3x 160W Solar Panels) 3.2-6.3 Hours (Using 1x 400W Solar Panel)
Capacity: 1260Wh
Cell Chemistry: Lithium-ion
Life Span: 800 cycles to 80%+ capacity
Management Systems: BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection.
Cell Type: 18650
AC Charge Input Power: X-Stream charge (1200W max)
AC Charge Input Voltage: 100-120Vac (50Hz/60Hz)
Solar Charge Input: 400W 10-65V DC 10A max
Car Charger: 12V/24V DC 8A max
AC Output (x6): 1800W total (Surge 3300W), 120Vac (60Hz)
USB-A Output (x2): 5V DC, 2.4A, 12W Max, per port
USB-A Fast Charge (x2): 5V/2.4A,9V/2A,12V/1.5A 18W Max
USB-C Output (x2): 5V DC, 9V DC, 15V DC, 20V DC, 3A, 60W Max, per port
Car Power Output (x1): 108.8W, 13.6V DC, 8A max

Model: 160W Solar Panel
Unfolded Dimensions: 26.8*61.8*1.0 in (68*157*2.4 cm)
Folded Dimensions: 26.8*16.5*1.0 in (68*42*2.4 cm)
Weight: 15.4 lb (Solar Panel 11 lb)
Rated Power: 160W(±5W)
Efficiency: 21%–22%
Connector Type: Solar Connector
Open Circuit Voltage: 21.4V (Vmp 18.2V)
Short Circuit Current: 9.6A (Imp 8.8A)
Cell Type: Monocrystalline Silicon

FAQ

1. How long does it take to fully charge DELTA using an AC port?

DELTA can be recharged to 0%~80% in 1 hour, and be fully recharged within 1.6 hours.

2. Can the DELTA be charged using AC and DC at the same time?

Yes. During this situation, DELTA will prioritize AC charging, and default to DC charging when AC charging is not used.

3. Can the DELTA be used as an uninterrupted power source?

It can be an emergency power source (EPS), which will have the same result as UPS for most electronics. Here's the difference. When your DELTA is plugged into the wall, anything plugged into it gets power from the grid, not its battery. If power from the grid stops, DELTA automatically switches to its battery supply mode within 30 milliseconds. That means anything connected will not have power for 30 milliseconds, which may mean sensitive electronics like desktop computers and data servers turn off. Test your devices individually to see if they need UPS to stay powered.

4. Does it charge if its inside?

Yes, if the only thing between it and the sun is transparent, but it won’t charge as well compared to being outside. You can compare the difference by looking at the input section of your power station’s LCD screen

WARRANTY

DELTA Portable Power Station - 2 year warranty

160W Solar Panel - 1 year warranty

USER MANUAL

DELTA 1300 Portable Power Station User Manual

160W Solar Panel User Manual
