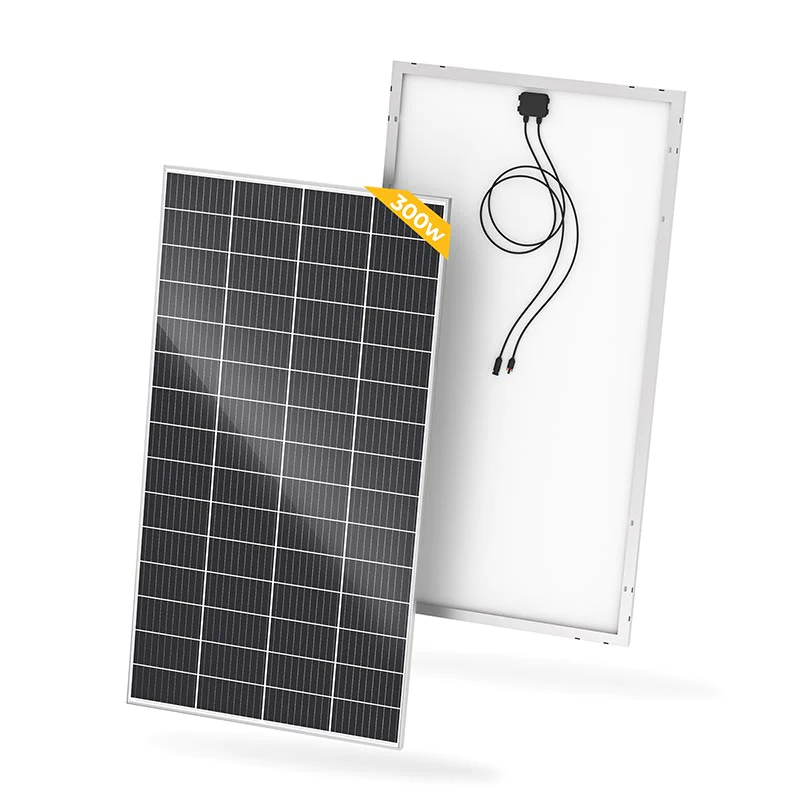

BougeRV 300W 12V 10BB Mono Solar Panel (New Arrival)

DESCRIPTION

BougeRV 300W 10BB solar panel is an exceptional choice for those looking for a high-performance solar panel. The 10BB cell design utilizes ten busbars to collect and transmit the electrical current generated by the solar cells, resulting in a significant boost in overall performance. This efficient solar panel is user-friendly, easy to install, and provides maximum output. The monocrystalline panels, 10BB cell design, and all-black design make this 300W 12v solar panel an exceptional choice for you.

10BB Cell Design

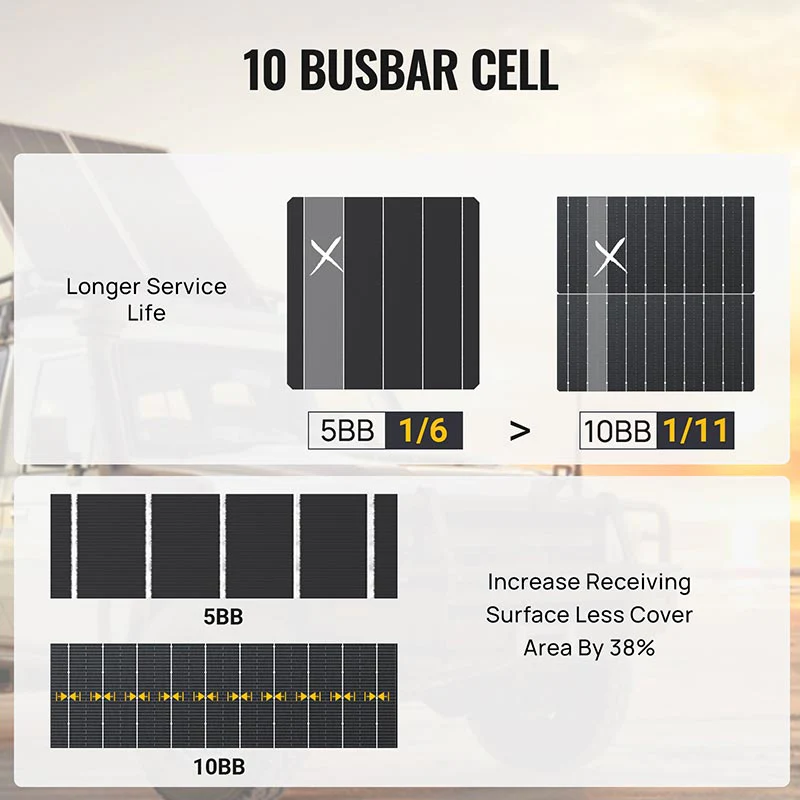

BougeRV 300W solar panel uses the high-level 10BB cell design which has a 23% highest conversion rate. Makes the solar panel have a longer service life. Increasing the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V/24 battery or charge a 48V battery by wiring several solar panels in series.

Compact size and more power!

Compared to three 100 watts solar panels, BougeRV 300 watts solar panels could save 11% space and reduce the loss of connection. Allows you to install more solar panels on the roof of the RV to expand a larger system to meet your daily needs.

Made of Class A Solar Cell

No visible defects and any micro-cracks, BougeRV 400 watts solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

Durable and reliable package

The new package offers ultimate protection with an extra protective strip on all sides, L-brackets on all corners, and an extra thick foam pad on the back. Trust that your shipment will arrive safely with our new package.

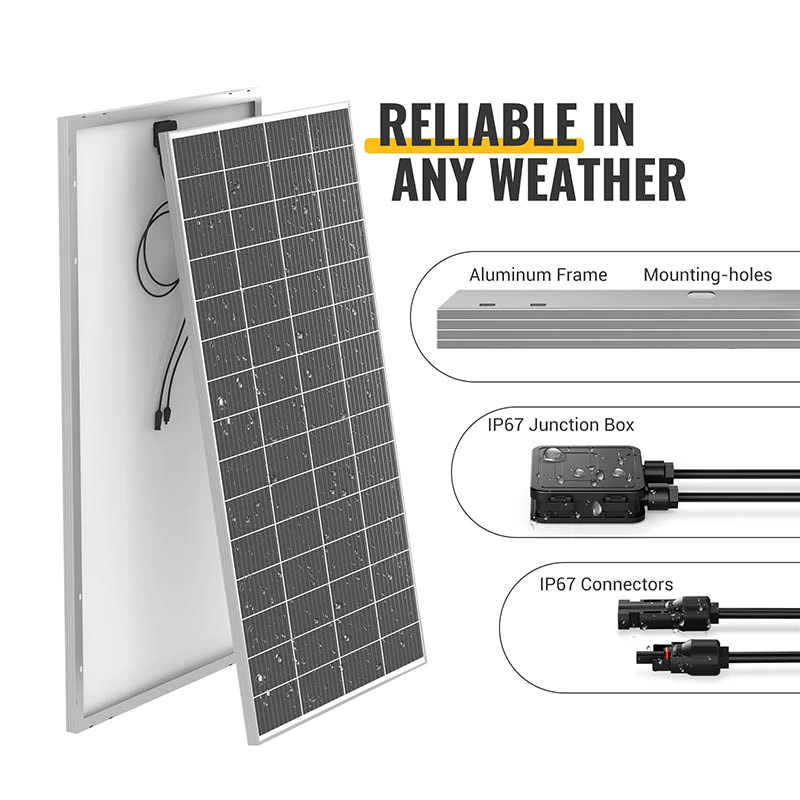

User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Solar Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

Multi-purpose use!

SPECIFICATIONS

SKU: ISE162
Maximum Power (W): 300±3% W
Product Dimension (in): 64.6 x 34.6 x 1.4 inches
Open Circuit Voltage (V): 20.8±3% V
Weight: 35.6lbs
Max Power Voltage Vmp (V): 17.5±3% V
Application Class: Class A
Max Power Current Imp (A): 17.14±3% A
Max Static Load (Front): 2400Pa
Short Circuit Current Isc (A): 18.85±3% A
Max Static Load (back): 2400Pa
Solar Cells Efficiency: 23%
Series Fuse Rating: 20A

WARRANTY

10 year limited warranty

USER MANUAL

BougeRV 300W 12V Solar Panel User Manual
