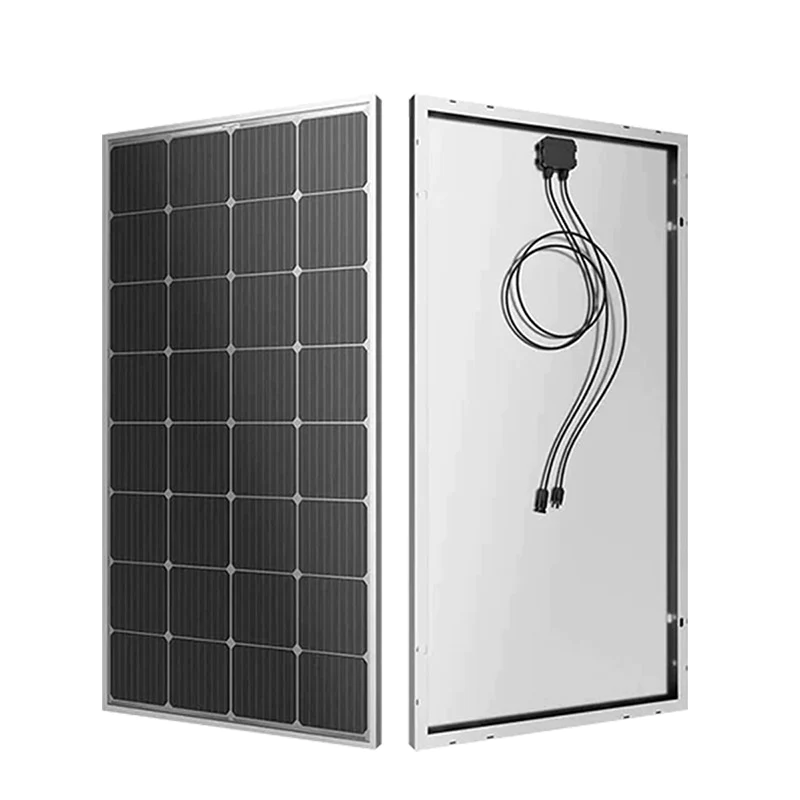

BougeRV 200W 12V 9BB Mono Solar Panel

DESCRIPTION

Unleash the full potential of solar energy with the 200W 12V 9BB Mono Solar Panel! Crafted with premium 9bb monocrystalline cells, this 200 watt solar panel delivers superior conversion efficiency and features a sturdy aluminum frame that can handle the toughest conditions. Perfect for off-grid setups such as rv's, boats and cabins. This panel is a must-have for any solar enthusiast looking to go green and save money.

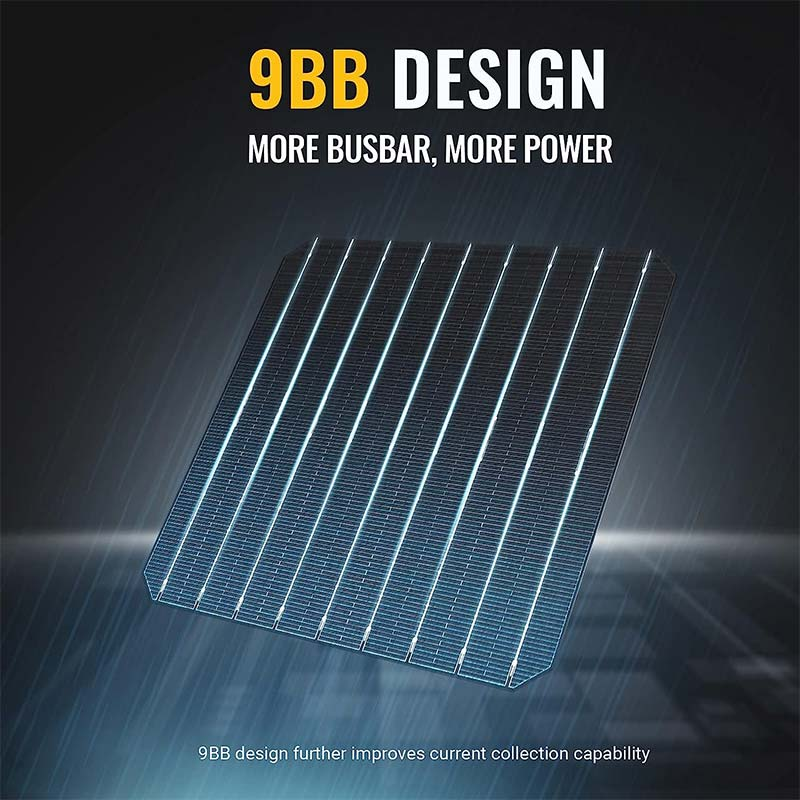

9BB Cell Design

More busbar, more power. BougeRV 200W solar panel uses the high-level 9BB cell design which has a 23% higher conversion rate. This makes the solar panel have a longer service life. Increase in the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V battery or charge a 24/48V battery by wiring several panel in the BougeRV series.

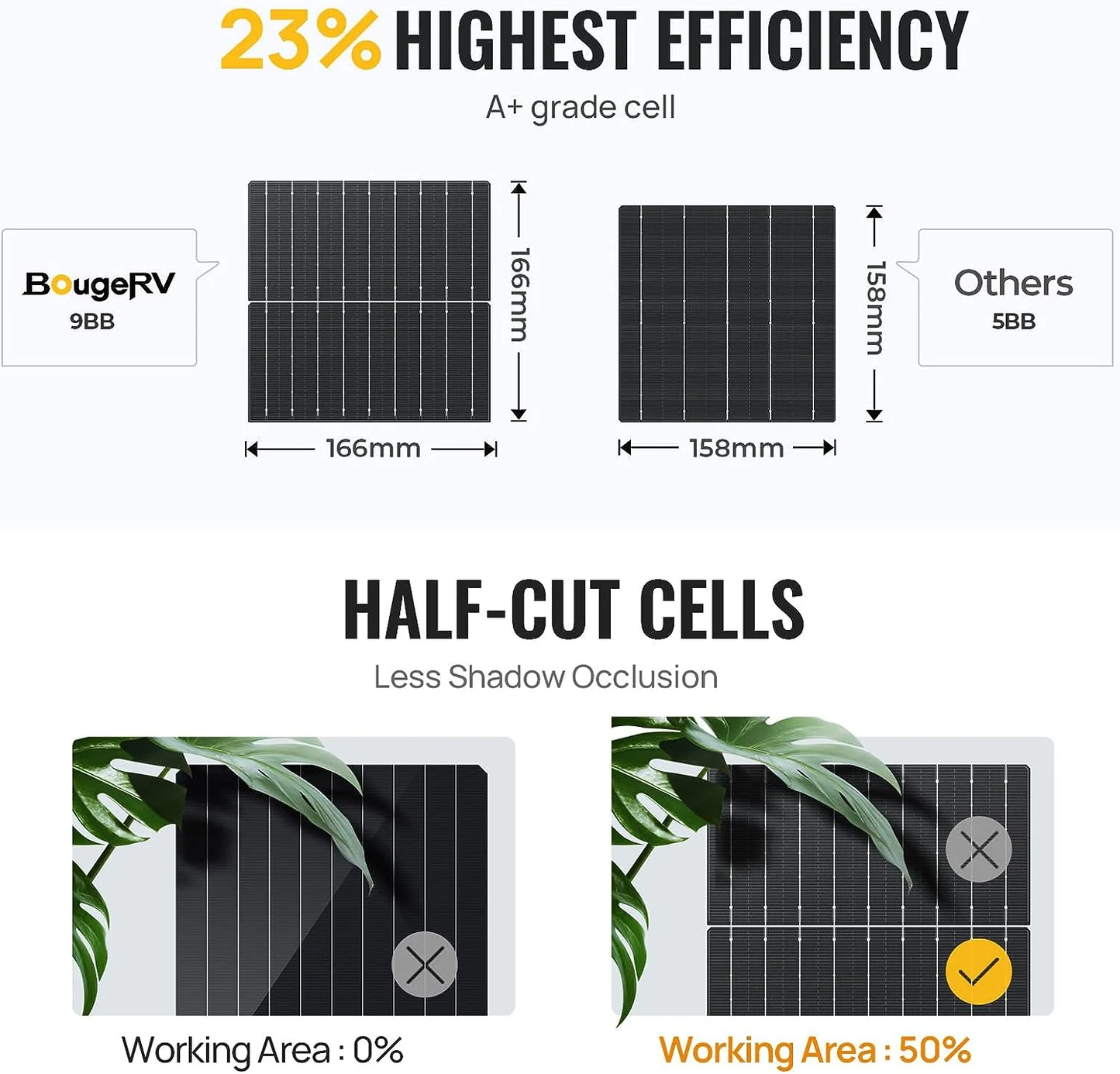

Made of Class A Solar Cell

No visible defects and any microcracks, BougeRV 200 Watt Solar Panel pass the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

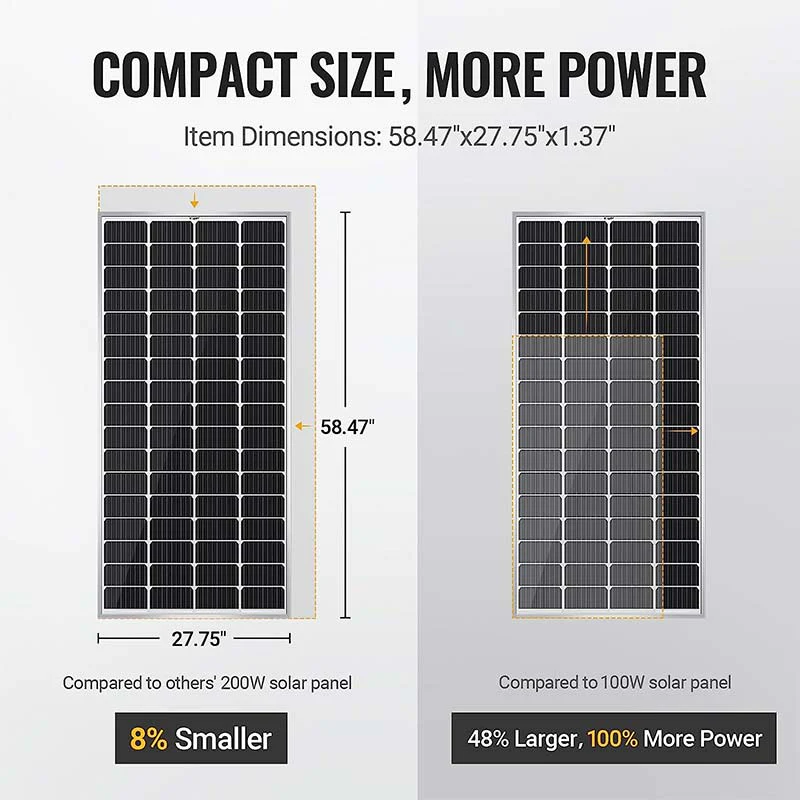

Compact Design, More Power

Compared to other 200W solar panels, BougeRV 9BB 200W is about 8% smaller but it could power the same or even more. Compared to other 100W solar panels, it's about 48% larger, but 100% more power, which allows you to install the solar panel on the limited roof of the RV/VAN/Trailer, so you can get more power in the limited space.

Suitable for multiple scenarios

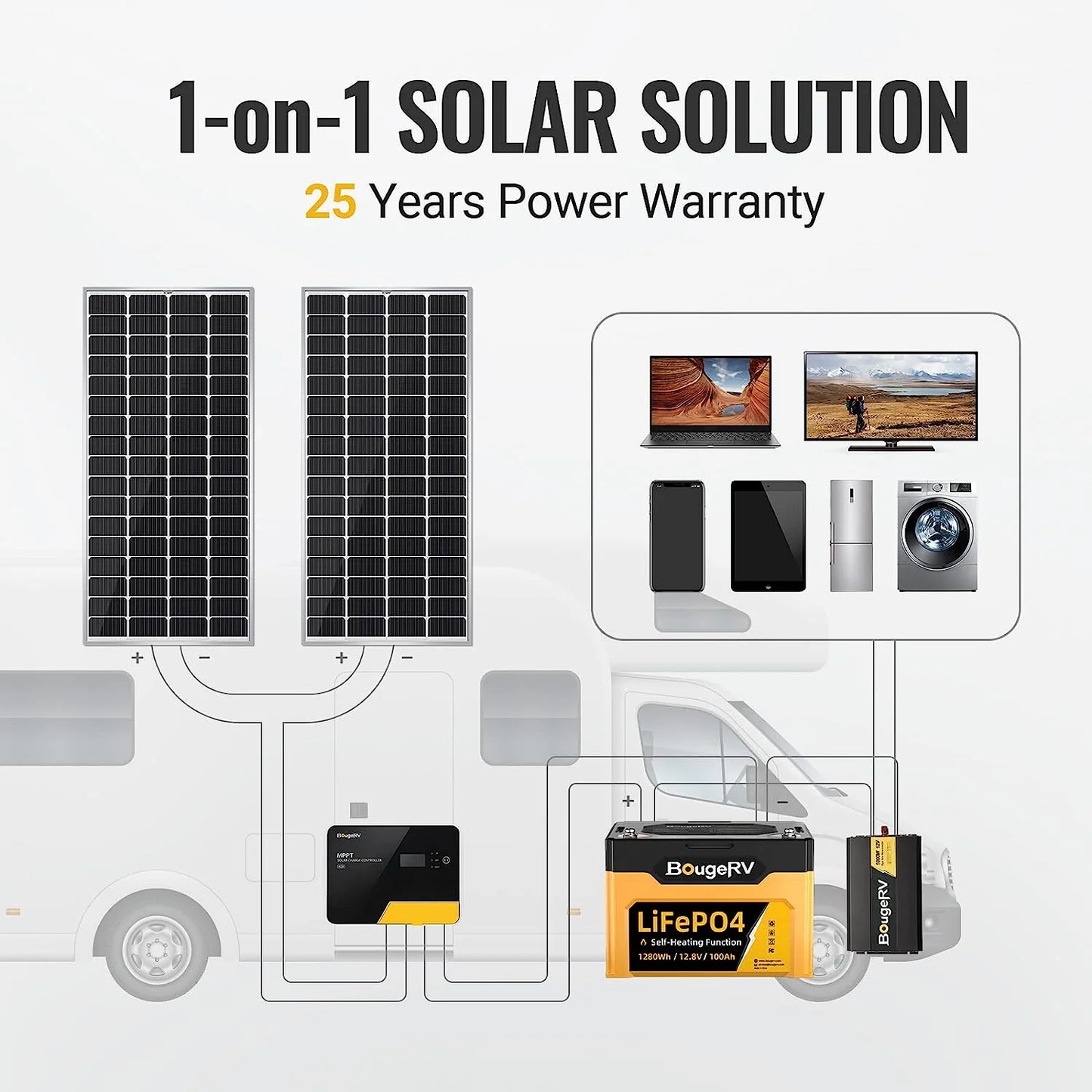

Compatible with on-grid and off-grid inverters, the BougeRV 200W solar panel is suitable for powering the house or for outdoor use. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life. It is easy to use and mount, and sophisticated to use with your RV's, boats, and other outdoor equipment.

Durable & Long Lasting

BougeRV sturdy 200W solar panels can withstand high winds (2400 Pa) and snow loads (5400 Pa) and have excellent performance in low-light environments. Corrosion-resistant aluminum can withstand the changing outdoor environment and prolong its service life.

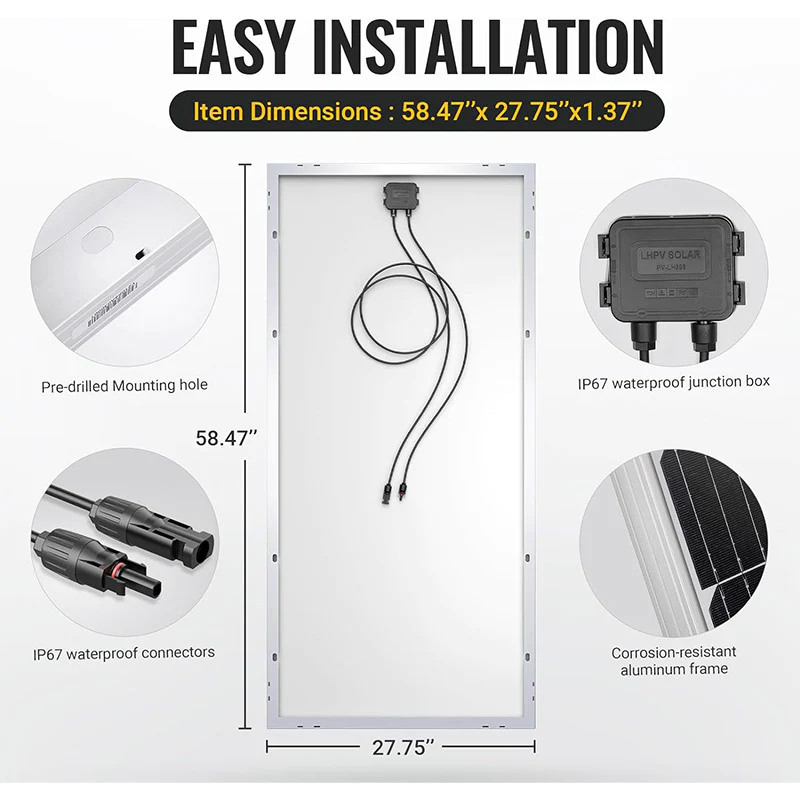

User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

SPECIFICATIONS

SKU: ISE114
Maximum Power (W): 200+-3% W
Product Dimension (in): 58.46x27.7x1.38 inches
Open Circuit Voltage (V): 22.5+-3% V
Weight: 24lbs
Max Power Voltage Vmp (V): 19.1+-3% V
Application Class: Class A
Max Power Current Imp (A): 10.99+-3% A
Max Static Load (Front): 2400Pa
Short Circuit Current Isc (A): 12.21+-3% A
Max Static Load (back): 2400Pa
Solar Cells Efficiency: 23%
Series Fuse Rating: 15A
Certification: CE/ETL

FAQ

1. If I order two 200W solar panels, will they come in one or two packages?

They will come in two separate packages.

2. Does the Y-branch parallel connector come with the solar panel?

Unfortunately, it does not. You can however find that here. (Add link to accessories for this).

3.  Is the IP67 Connector waterproof?

Yes, it is waterproof.

4. Why are 9BB solar panels better than 5BB solar panels?

The advantages of 9BB solar cells are that they have less internal resistance loss than 5BB solar cells which can reduce the impact of micro-cracks and have a thinner busbar and larger light-receiving area resulting in more power output.

5. What causes 200 watt solar panel low output and how can I solve it?

The low output power of 200  watt solar panels is mainly affected by low light intensity, unsuitable light angles and shadow occlusion. To prevent shadows, adjust the solar panels and make them point directly at the sun during daily use. Also, clean the solar panel regularly to remove obstructions such as bird droppings, dust and other particles.

6. Is the output really 170W? Similar panels do not seem to get more than around 100W.

This 180W (200W) solar panel is larger than an ordinary 100W solar panel and has more cells. This product was developed with power output and the scene in mind. The output voltage is affected by the light angle (vertical radiation angle is the most efficient), light intensity (greater intensity = higher output), and shadow exposure.

7. How many amps for a 200 watt solar panel?

The average output of a 200 watt solar panel depends on the voltage rating of the panel. You can calculate by the following formula: Amps=Watts/Volts. For example, if the panel has a voltage rating of 12 Volts, then the amperage output would be Amps=200 Watts/12 Volts = 16.67 Amps.

8. Can a 200 watt solar panel run a refrigerator?

Yes, a 200 watt solar panel can run a refrigerator but it depends on the size of your refrigerator. It may not be sufficient for a large family refrigerator. It can run a 12V mini fridge.

9. What will a 200 watt solar panel run?

You can use a 200 watt solar panel to run a variety of small to medium-sized appliances and electronics such as laptops, Led lights, LCD TV's, coffee makers, a radio, mini projector, and a microwave for example.

10. Can I mix 100 watt and 200 watt solar panels?

Yes, you can mix 100 watt and 200 watt solar panels but it may result in decreasing productivity and energy production. It is recommended to use panels of the same wattage to optimize the performance.

WARRANTY

18 Months

USER MANUAL

BougeRV 200W 12V 9BB Solar Panel
