BLUETTI

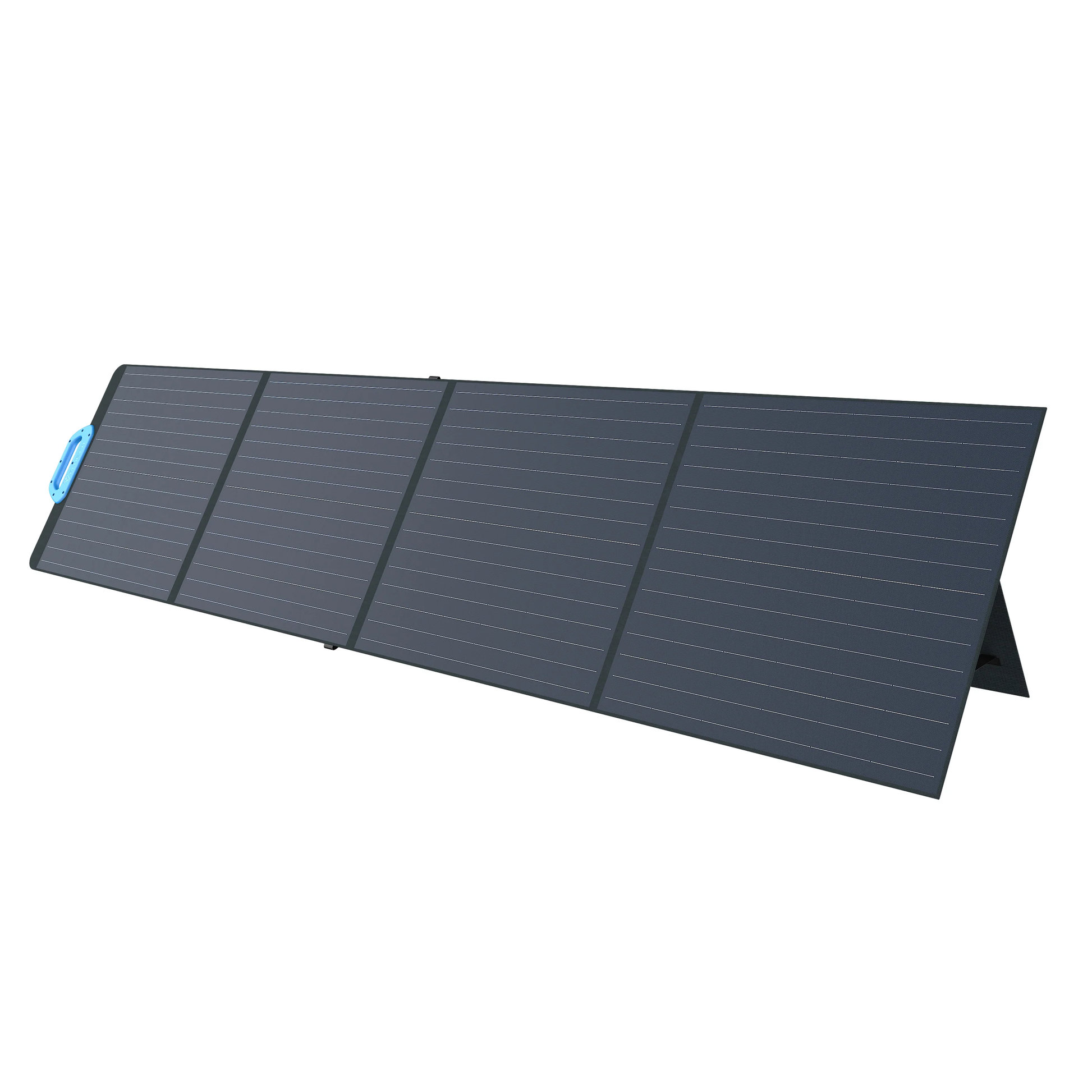

BLUETTI PV200 Solar Panel

Regular price: Price: $499.00
Regular price: List Price: $599.00
Sale price: Price: $499.00
Unit price: per

Product variants

Quantity

DESCRIPTION

Solar Charge Anywhere

Connect it and leave it. BLUETTI 200W solar panel is set to keep your solar generators juiced as long as there is sunlight available.

23.4% High Efficiency

Built with monocrystalline solar cells, the PV200 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.

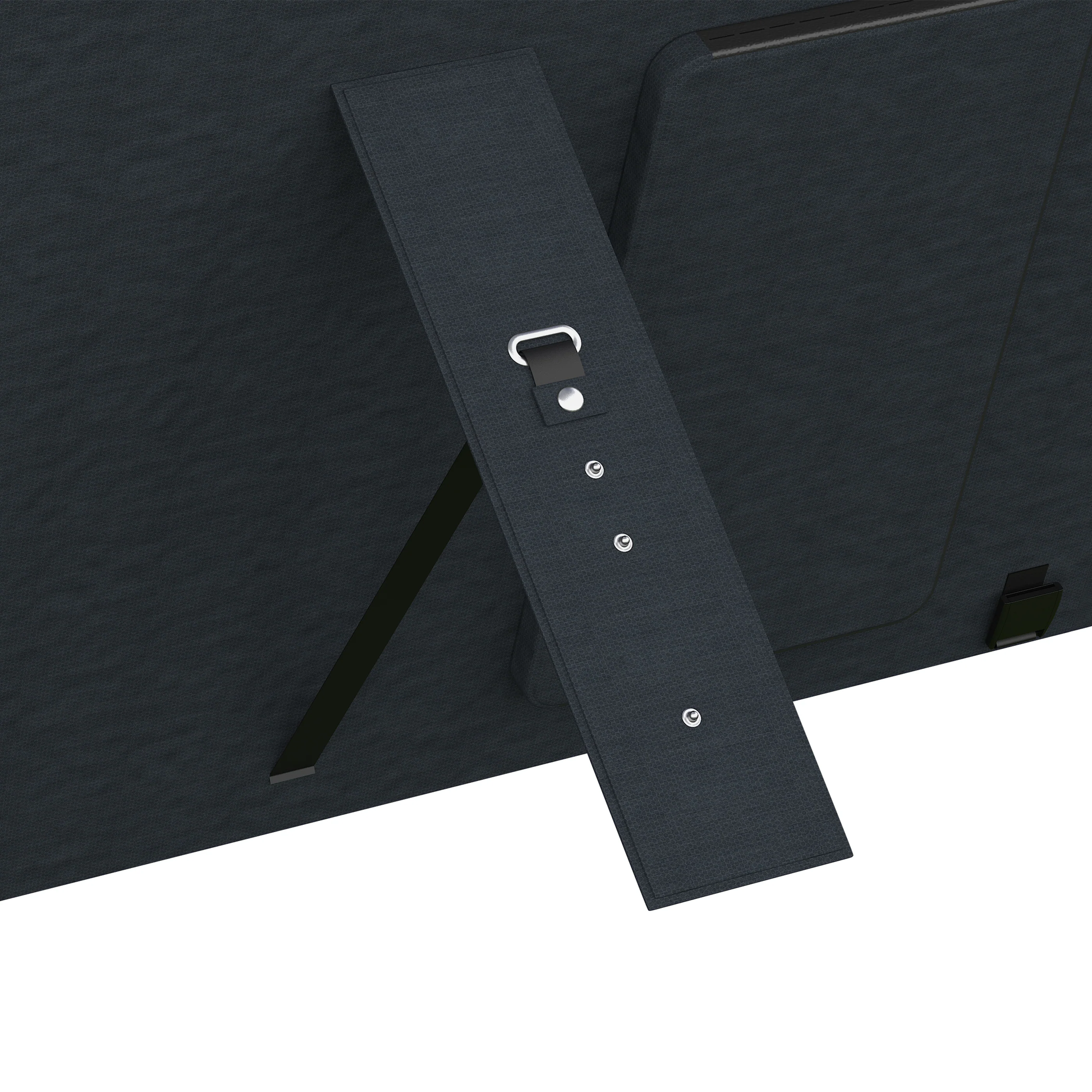

Easy Setup With Kickstand

Unfold the PV200, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.
(The recharging time refers to 80% of power level being charged*)

BLUETTI EB55 (537Wh) + PV200: Charge in as soon as 3 hours
BLUETTI AC200P (2,000Wh) + 2*PV200: Charge in as soon as 5.5 hours
BLUETTI AC200MAX (2,048Wh) + 4*PV200: Charge in as soon as 3 hours
BLUETTI AC300 + B300 (3,072Wh) + 8*PV200: Charge in as soon as 2.5 hours
BLUETTI EP500 (5,120Wh) + 6*PV200: Charge in as soon as 4.5 hours

Built to Last
The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)

SPECIFICATIONS

Lamination: ETFE (Ethylene tetrafluoroethylene)
Cell Type: Monocrystalline Silicon
Cell Efficiency: Up to 23.4%
Voltage at Max Power(Vmp): 20.5V
Current at Max Power(Imp): 9.7A
Open Circuit Voltage(OCV): 26.1V
Short Circuit Current(Isc): 10.3A
Connector: Standard MC4 Connector
Weight: 16.1lbs
Dimensions (Unfolded): 23.2 × 89.2in (59 × 226.5cm)

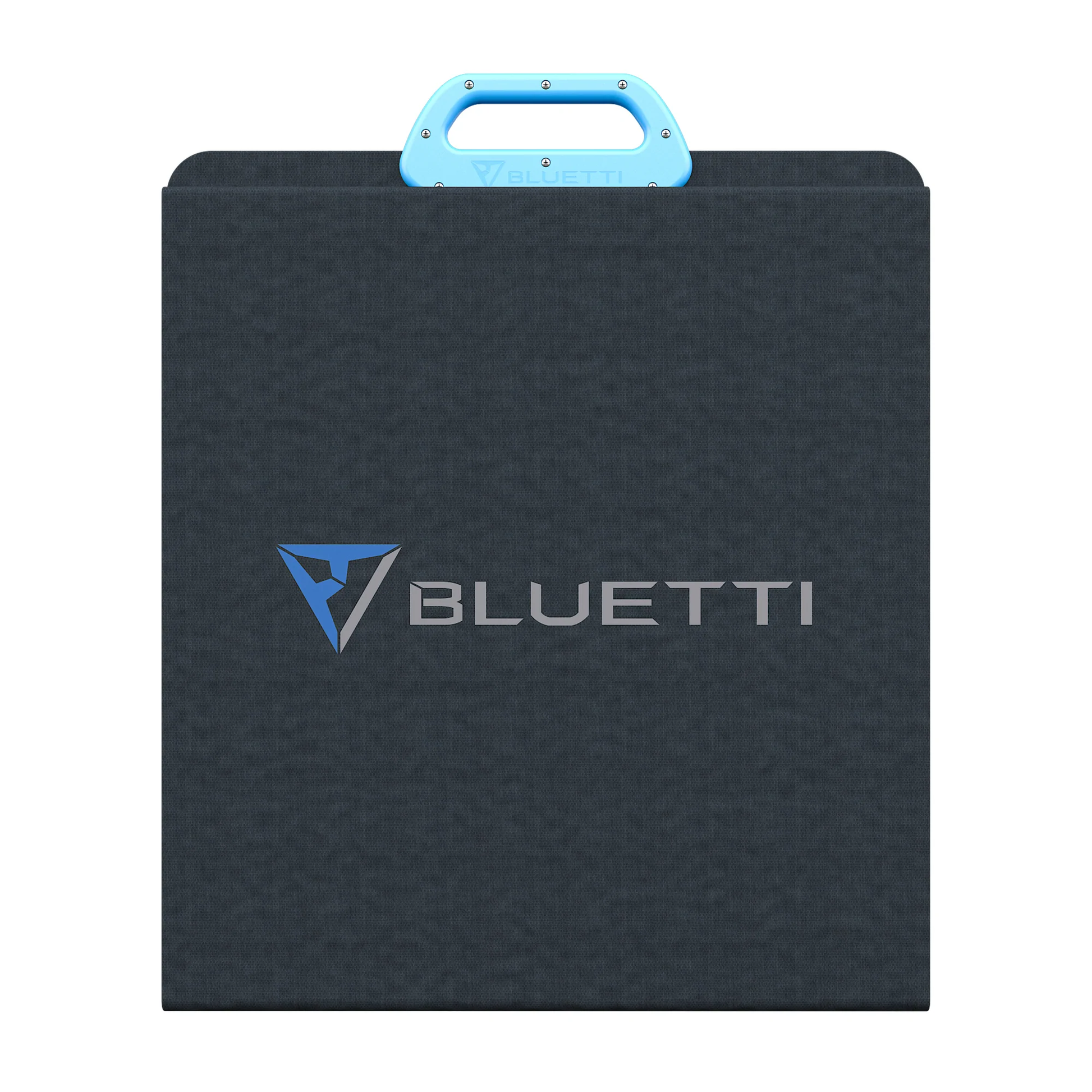

Dimensions (Folded): 23.2 × 24.8inch (59 × 60cm)
Operating Temperature: 14-149℉ (-10-65℃)
Best Working Temperature: 77℉ (25℃)
Cable Length: 118in (3m)
Certifications: FCC, CE, ROHS
Power: 200W

FAQ

1. Is it water proof?

Yes, however, do not expose to snow or rain.

2. Can I use the BLUETTI Solar Panel to charge other Portable Power Stations?

Yes as long as they have: 1) MC 4 Connectors 2) support the output specifications of BLUETTI solar panels.

3. How do I choose solar panels for my portable power station?

1) Review the PV input requirements of the solar generator. 2) Review the output specifications of solar panels. 3) Calculate the total voltage, current, and wattage of solar panels. 4) Consider the solar input connectors.

4. How do I maximize the efficiency of the solar panel?

1) Set up your panels correctly: The orientation as well as the angle it tilts at should be right. 2) Avoid shadow areas: Any amount of shadow will affect solar panel production. 3) Keep your panels clean: Dirt or debris reduces the panel’s efficiency. 4) Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.
